Creating a process form

To create a process form inside your Application builder,

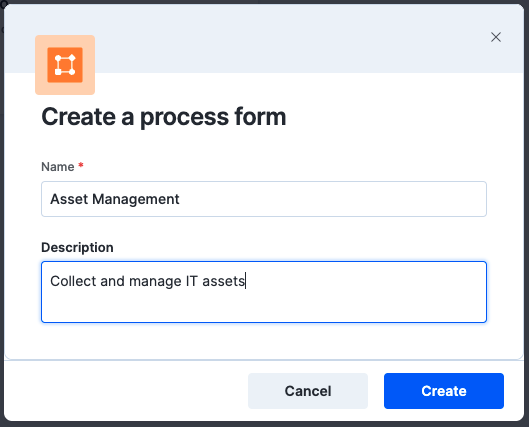

  1. You can create a process from the home page using the Process tab under Quick create. Alternatively, Click Forms > Process forms > Create a process form.
  2. Enter the process name. You can also optionally add a description and category to help you organize and find your process later.
  3. Click Create.





Building a process form

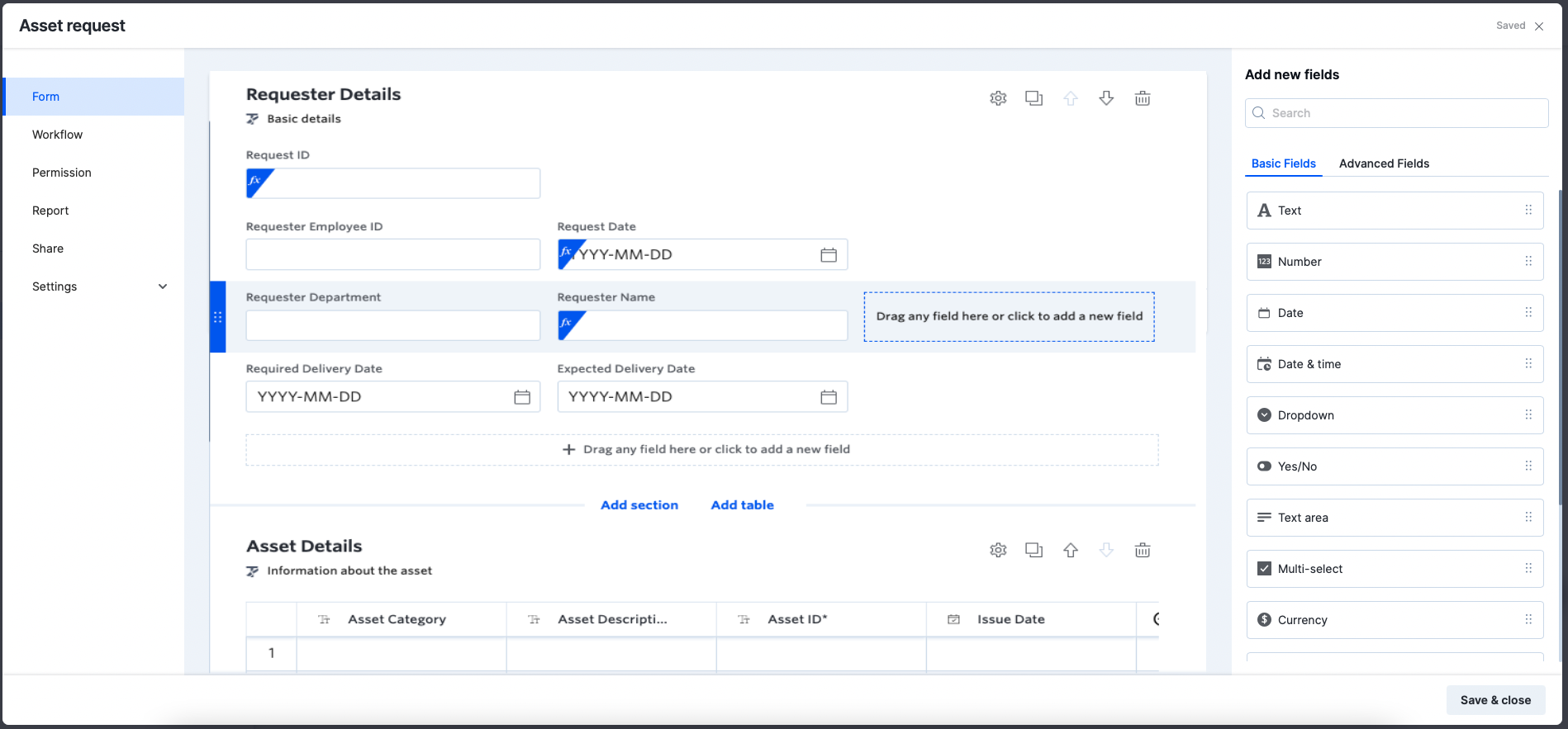

After creating a process form, you'll land on the process form editor screen. The basic form, workflows, permissions, reports, roles, and settings are handled on the left side of the editor. The form appears on the center and the basic and advanced fields are provided on the right side of your editor. You can either click within the form or drag and drop the fields onto the form directly. Once the form is set up, click Save to make it available inside the application.


Renaming and archiving a process

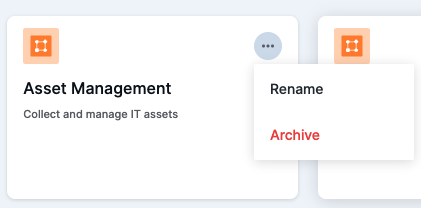

To rename your process form, simply click on the More options button () on your process form. Click Rename. Change your form's name and description. Similarly, click the Archive button to archive a process form temporarily.


Customizing a process

Every process comes with its own formworkflow, and permissions. As an application developer, open the process form and click the tabs with these names on the left navigation bar to access these properties.

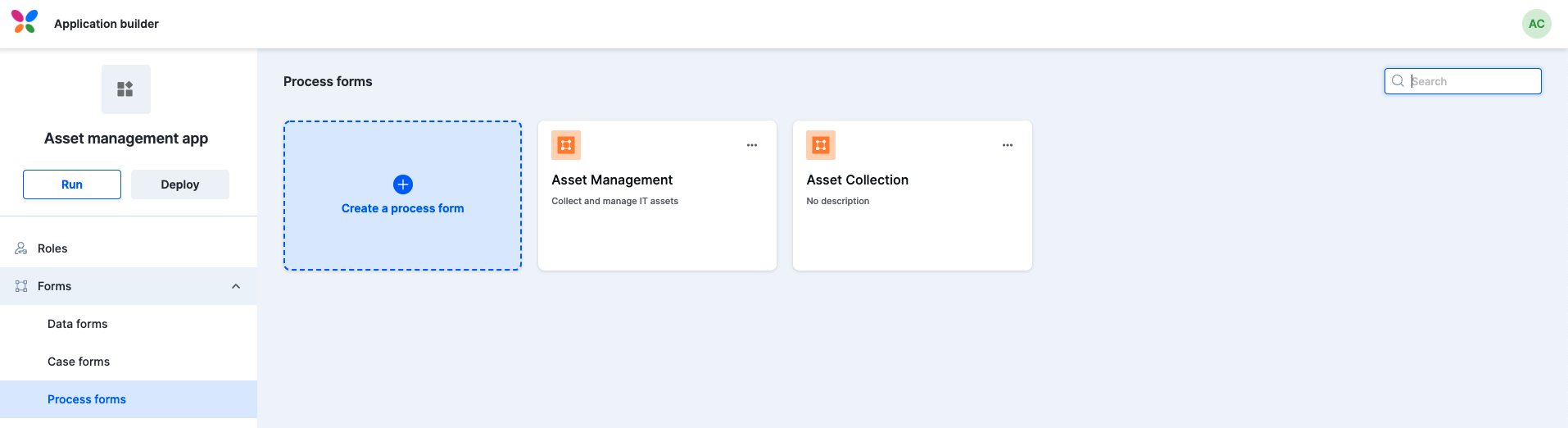

Finding a process

All the process forms that you create sits on the Process forms gallery. Use the search bar to quickly find a specific process form.



Process forms let you define the data necessary to move an item through your flow. Forms are used for workflows like processes and boards. They are made up of sections, fields, and tables.

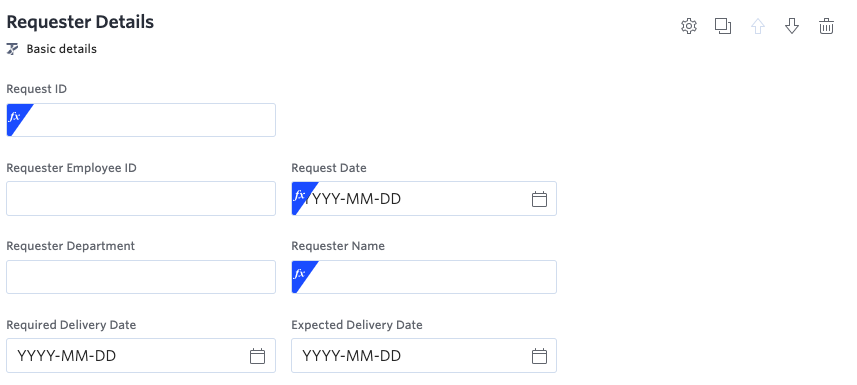

Sections

Sections are groups of fields. They are useful to help make the form easier for users to complete. Additionally, you can control all of the field permission settings as a group instead of individually.

In a new form, the first section is called the Untitled section. To rename it, just click on the name. You can also add a description to help users. Add rich text including images and videos by clicking the Text formatting button ().

To add a new section, click Add section.

Click the Settings button() to change the visibility settings. By default, the section will always be visible, but you can change it to hidden. You can make the section conditionally visible by clicking +Add a visibility rule. To add a condition, choose a FieldOperatorType, and map it to a value or a field based on the type. You can add multiple conditions.

To duplicate a section, click the Duplicate button (). A copy of the section will be created below.

Click the Up arrow () or Down arrow () to rearrange the sections.

Click the Delete button () to delete the entire section.

Fields

Fields are the building blocks of your form. They are the individual pieces of data you want to collect. Kissflow forms have 22 different types of fields to capture several kinds of data.

Click on any field type to add it to the bottom of the current section you are working on. Or, you can drag and drop any type of field to the exact place in the form you want it. You can also click on the place in the form where you want to add a field and a new one will pop up.

The form will look exactly like you create it here to a user. To rearrange fields, drag and drop them where you want them to go. You can move individual fields, or an entire row of fields. Fields can be resized to any dimension you need. Drag to resize the width of the field. Rows can have up to six fields.

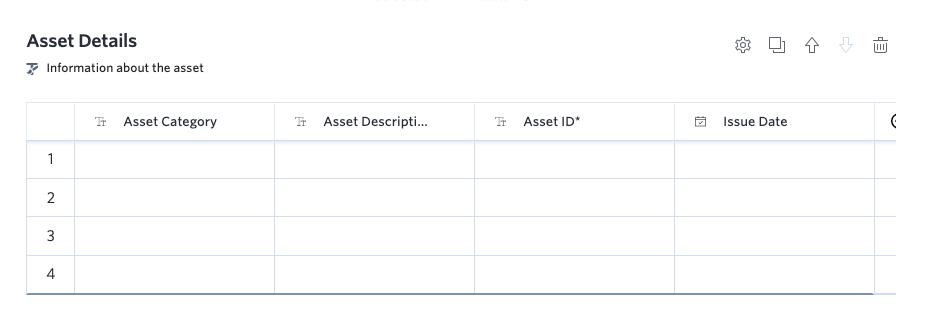

Tables

A table acts as a separate section and lets you collect an unlimited set of similar data. To add a table, click Add table. Click the Add button to add a new field. You can add as many fields as you want to a table.

You have the same options for tables as you do for sections. Additionally, in the table settings, you can set validations to control the minimum and maximum number of rows that must be completed.
